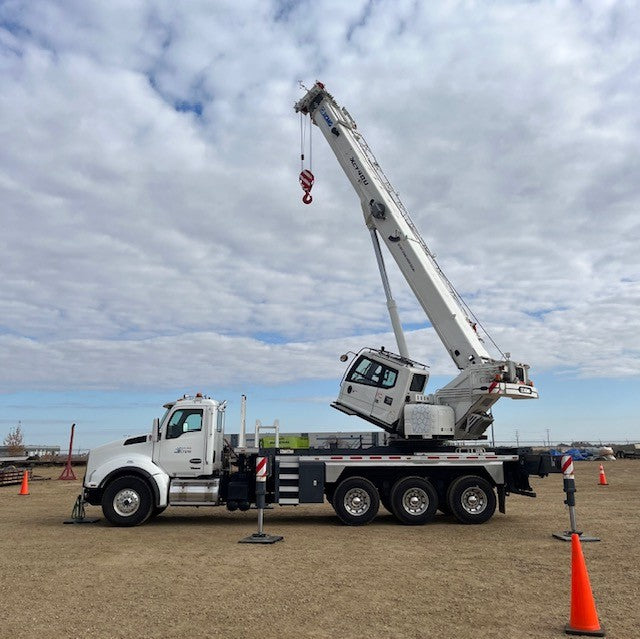

2024 XCMG STRAIGHT BOOM CRANE MODEL XCT40U, SN LXGDLA320RA2708, EQUIPPED AS FOLLOWS:
MAX CAPACITY: 80,020 LBS @ 5'
MAIN BOOM: 5-SECTION U-SHAPE TELESCOPIC BOOM (MAX REACH 142') with OFFSETABLE BI-FOLD LATTICE JIB (30.5' - 53.5')
CONTROLS: ELECTRIC OVER HYDRAULIC DUAL AXIS JOYSTICKS
OPERATOR PLATFORM: TILT/SWING CAB W/ DIESEL HEATER & AC
OVERLOAD PROTECTION: HIRSCHMANN LMI W/ WIRED A2B & EXT. LMI
LIGHTBAR WINCH(ES): DUAL WINCHES W/ 7/8” NON-ROTATIONAL ROPE
SWING TYPE: STATIC SWING &/OR FREE SWING
ROTATION: CONTINUOUS ROTATION
MAIN LEGS: HYD-OUT & DOWN MAX SPREAD 23.6'
REAR/AUX LEGS: HYD-OUT & DOWN MAX SPREAD 23.6'
OUTRIGGER CONTROLS: RADIO REMOTE CONTROLLED W/ MANUAL BACKUP
FRONT STABILIZER: FOR 360 DEGREE LOAD CHART
OIL COOLER: INCLUDED
OIL TANK: 149 GAL
LOAD BLOCK: 27 TON 3-SHEAVE LOAD BLOCK
LOAD BALL: 5.5 TON HOOK BALL FOR 1 PART LINE
ANEMOMETER: WIND SPEED INDICATOR
LED LIGHT PKG: ON BOOM, TURRET & CRANE CAB
WALKING DECK: MADE OF ALUMINUM AROUND SUB FRAME
TOOLBOX: ON DRIVER SIDE
PADS: SET OF 5 COMPOSITE 30X30X1.5 INCH PADS
PAINT: WHITE UPPER / GREY LOWER
****2023 KENWORTH TRI-DRIVE T880 INCLUDING THE FOLLOWING****
VIN: 987032 (LAST 6)
Color: WHITE
Engine: PACCAR MX-13 510@1600 1850@1000
Transmission: ALLISON 4000RDS 6-SPD AUTOMATIC
Front Axle Rating: 20,000 LBS
Front Tire Size: 445/65R22.5
Rear Axle Rating: 69,000 LBS
Rear Axle Spacing: 54"
Rear Tire Size: 12R22.5
Frame Rail: 10 3/4 X 3 1/2 X 3/8 W/ FULL INSERT
F.O.B. LEDUC, AB
