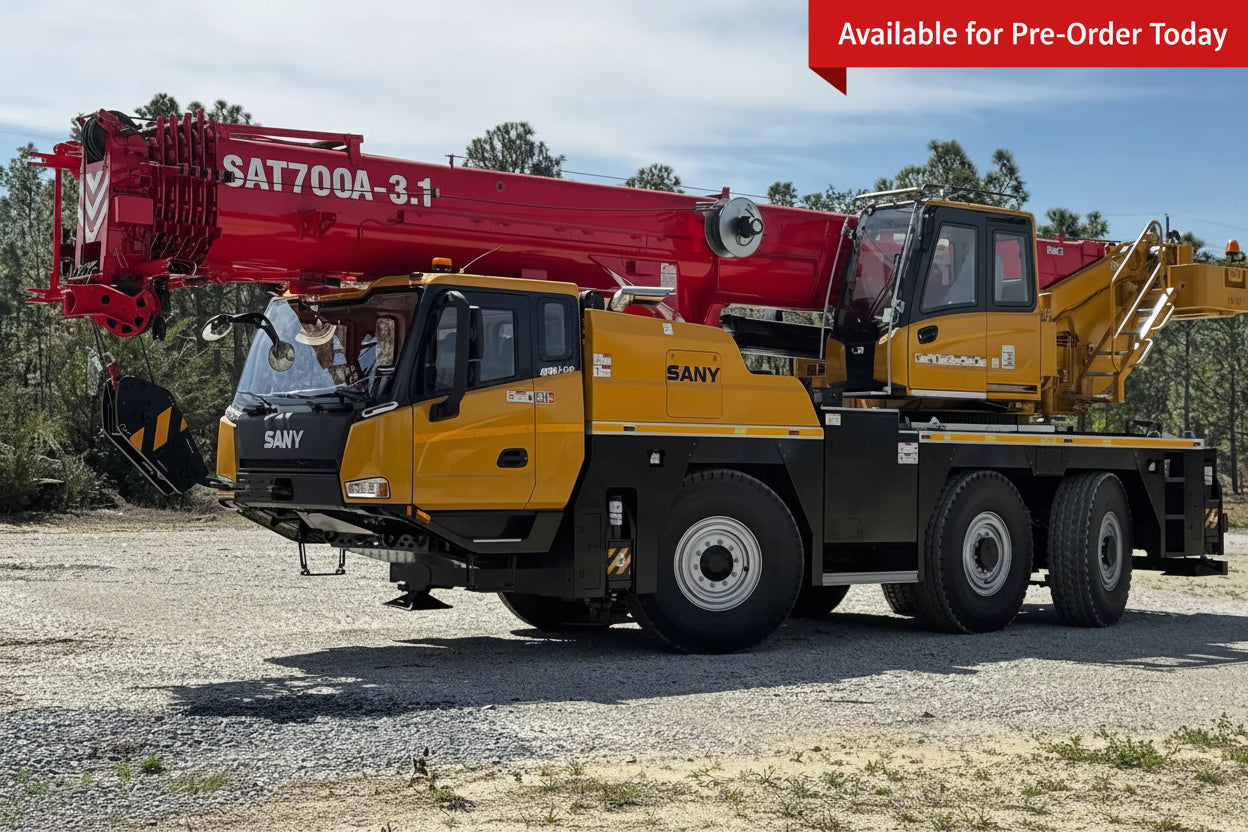

MODEL SAT700A-3.1 (70T CAPACITY)
EQUIPPED AS FOLLOWS:
Cummins L9 off-road in-line six diesel engine, complying with Stage V emission standards (364.7 hp @ 2,100 RPM)
Allison 4500SP 6-speed AT transmission
Kessler Axles
6-section boom extends up to 164’
Jib: 52’ 2-stage folding, hydraulically adjustable (offsetable at 0/20/40 degrees)
Max tip height 218’
Main and auxiliary winches, wire ropes are ½” (15 mm) in diameter and 721 ft (220 m)
in length
Auxiliary Tip
6x4x6 drive/steer configuration
Tiltable cab (20 degree)
Fully Automatic Climate Control System (HVAC)

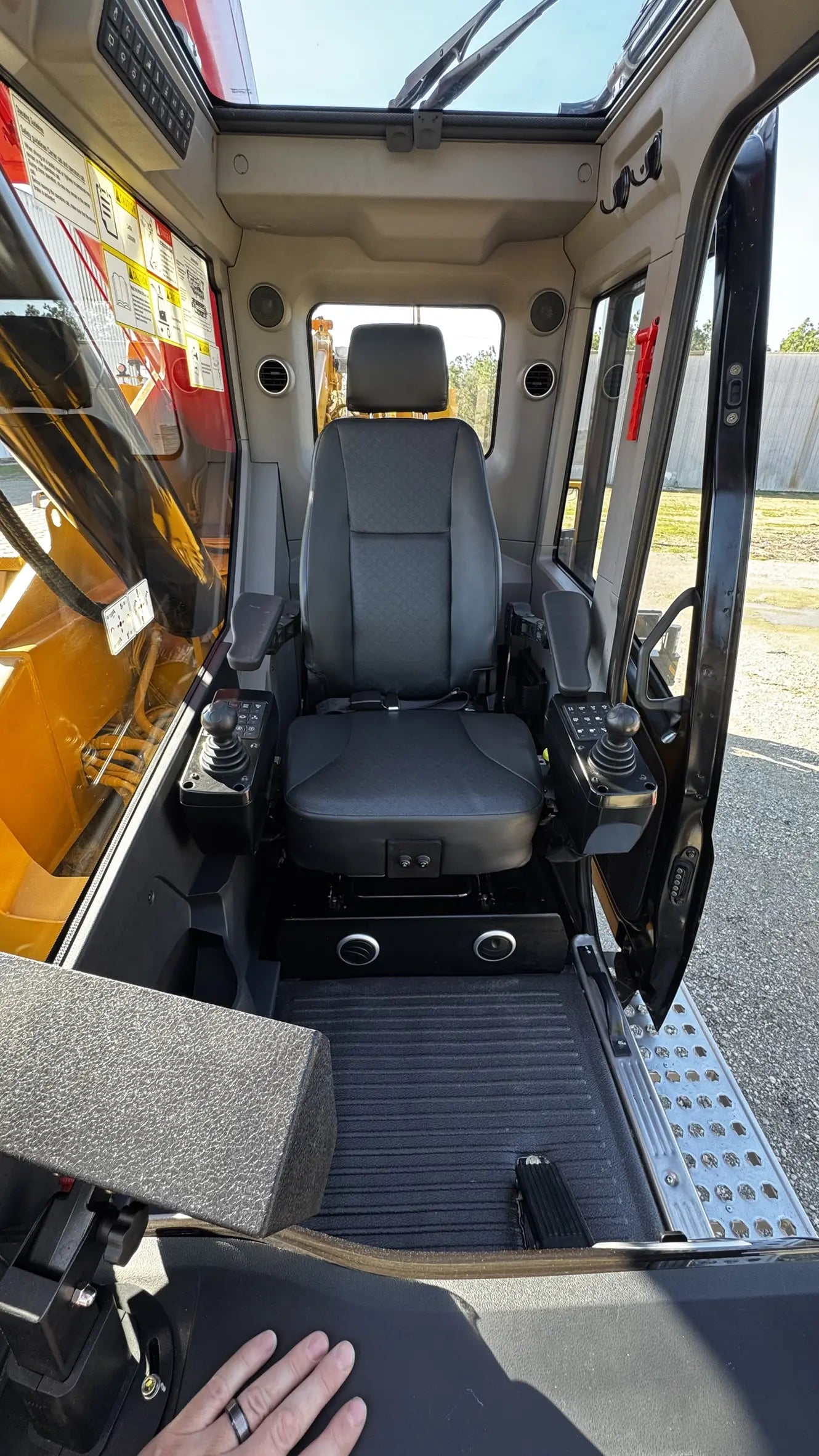

Multi-function driver’s seat with air suspension
Wider Seat (1.57 ft / 480 mm) & 30% More Legroom

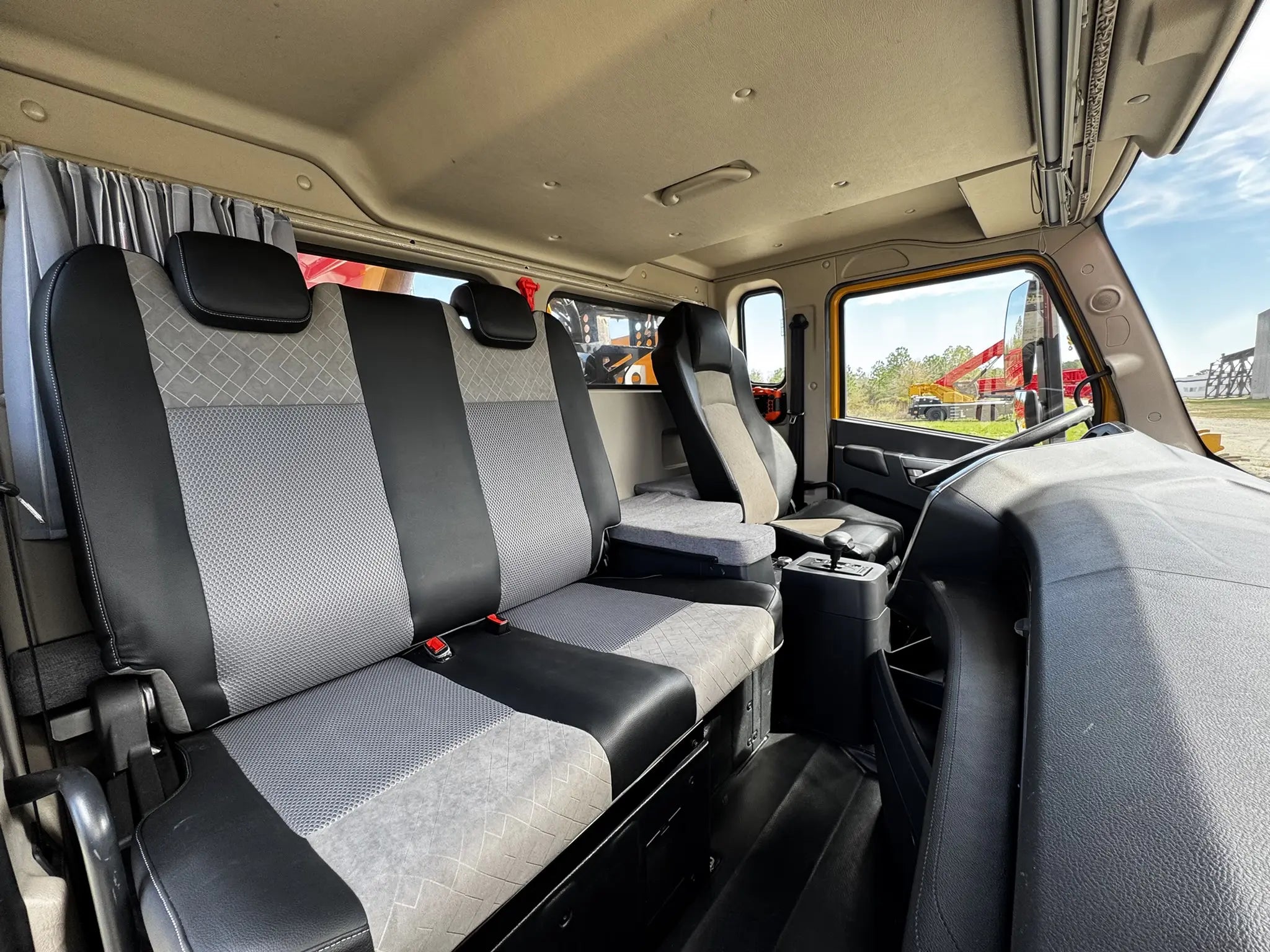

Convertible Dual Passenger Seats that fold into a spacious
sleeping berth
10.1-inch Touchscreen Display with integrated backup camera
and multimedia controls
Wide-Angle Heated Rearview Mirrors
High-Intensity LED Headlamps & Fog Lights
Convenient Sliding Door & extendable Sidestep for easy entry and exit
Precision Electronic Control Joysticks
Wireless Remote Control
525 aluminum wheels w/ Bridgestone tires
Full counterweights
32t, 16t, 6.3t blocks & ball (domestic)
Anemometer
Aircraft warning light
Standard cold weather package
NEW MACHINE WARRANTY- 36 months/ 3,000 hours
F.O.B. LEDUC, AB
